Bicycle Smart Headlights, Waterproof Road MTB Bike Handlebar Front Light, USB Rechargeable 800Lumens

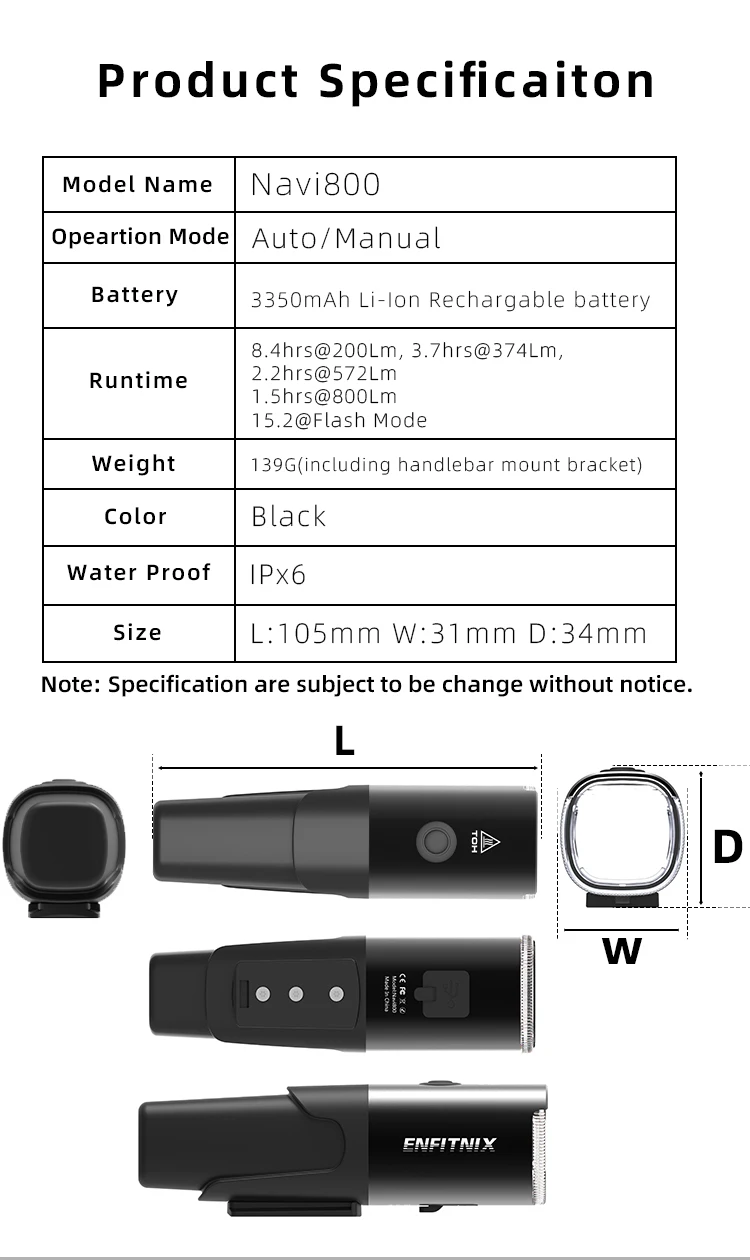

1. Product Specification
Product Name: Navi800 Smart Front Light
Dimensions: L:105mm W:31mm O:34mm
Operation Mode: Ruto/Manual

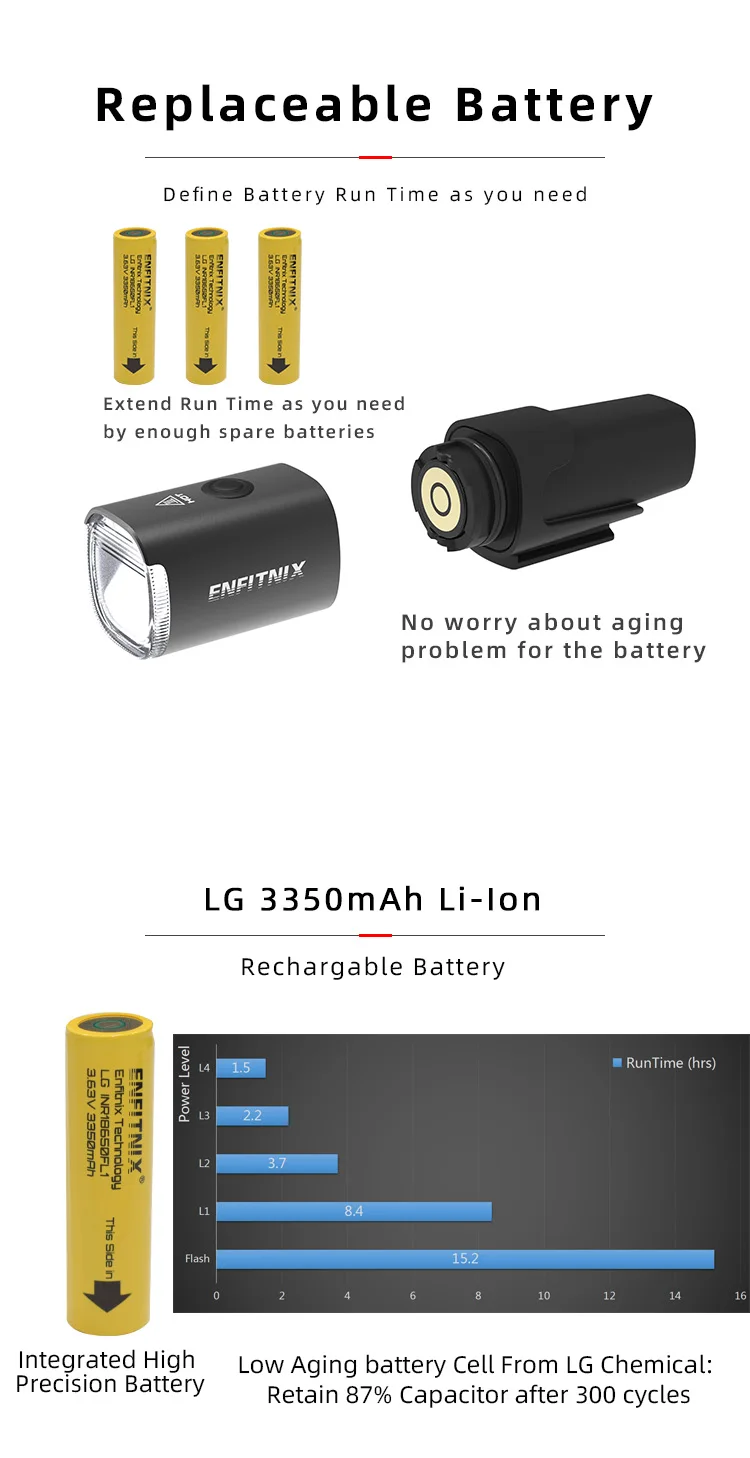

Battery: 3350mah rechargeable Lithium-ion battery

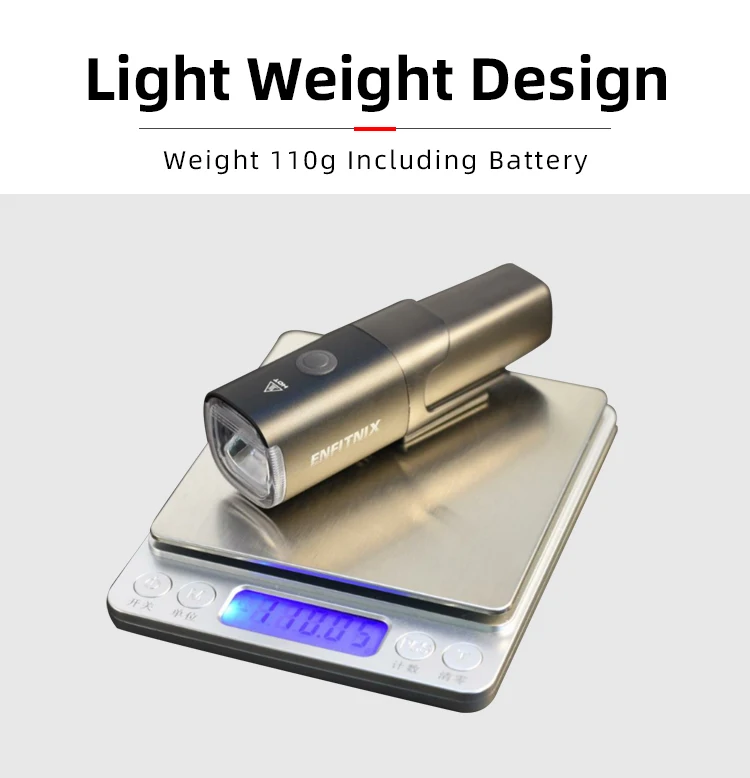

Weighe:139g(including mounting bracket)
Run Time: 8.4hrs@200Lm 1.5hrs@800Lm

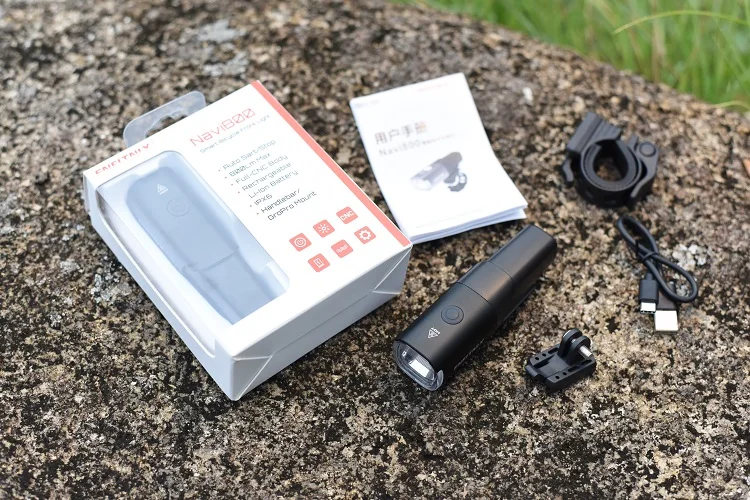

Navi800/Battey/USB Cable /Handlebar Bracket Mounting/ GoPro Mount Bracket

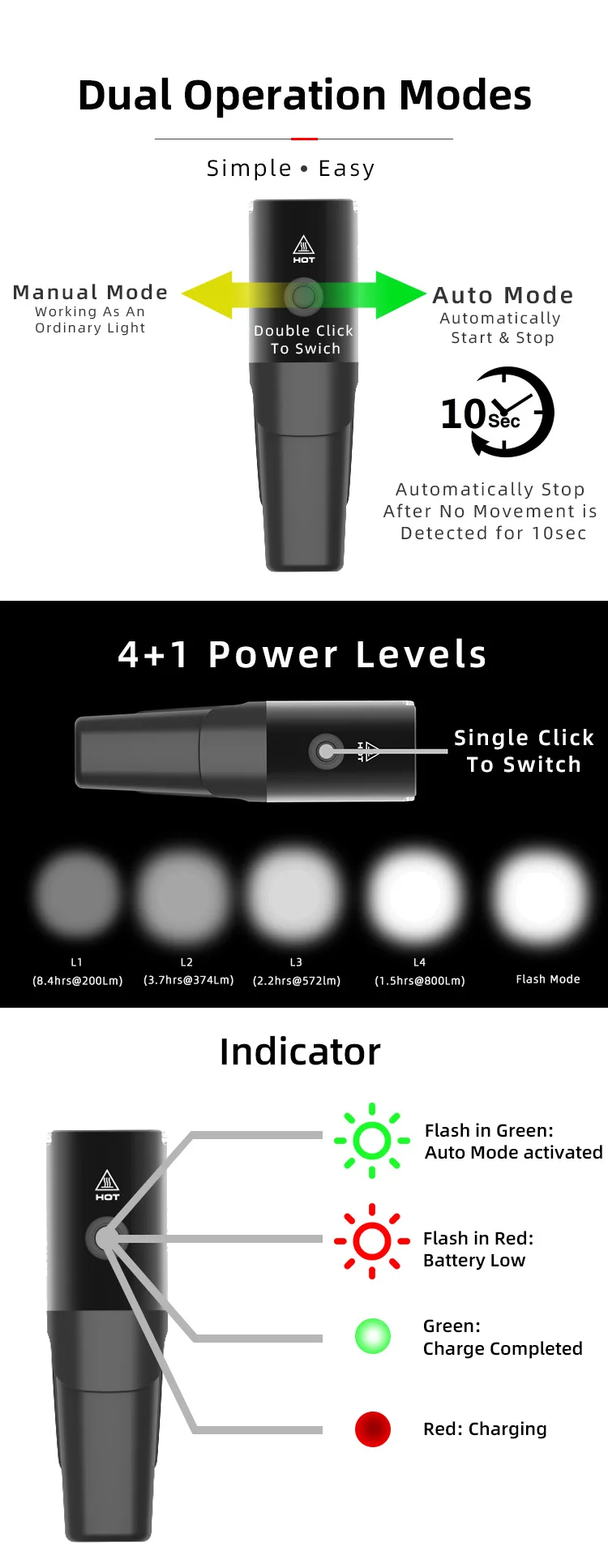

3. Operation and functionality
Navi800 comes with a motion sensor that allows the light to detect if the user is moving the bike and turning on/off the light automatically
Single click Change the output power or turn on the light
Double Click Switch between auto mode and manual mode
Press down>1s Switch off
Note: When operating in Auto-mode the light will be turned on again if motion is detected
The navi800 supports two operation modes which can be changed between the two modes by double-clicking the button
4. Change the battery
Change the battery
Remove the rubber seal 1 on the button of Navi800 and charge the battery via the USB connector., Battery will be fully charged in2-3 hours. The charge indicator will turn red when charging is in progress and will turn green when the charge is completed.
Replace the battery
The battery can be removed/replace by turning the cartridge clockwise or anti-clockwise as below:

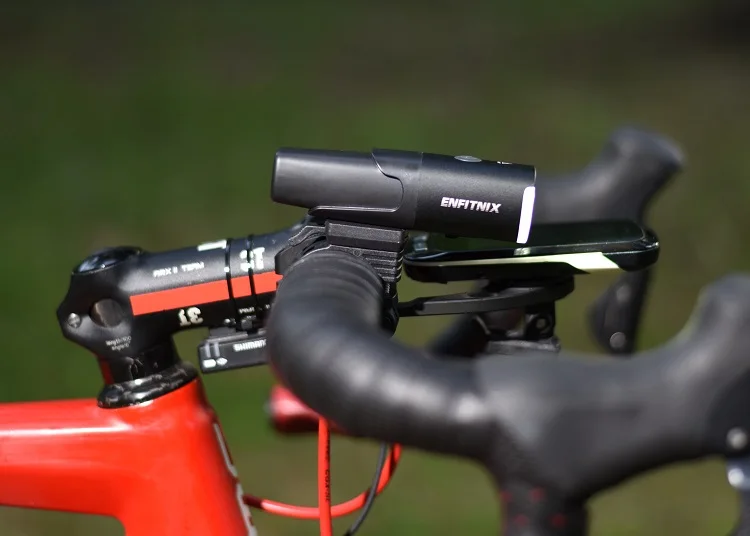

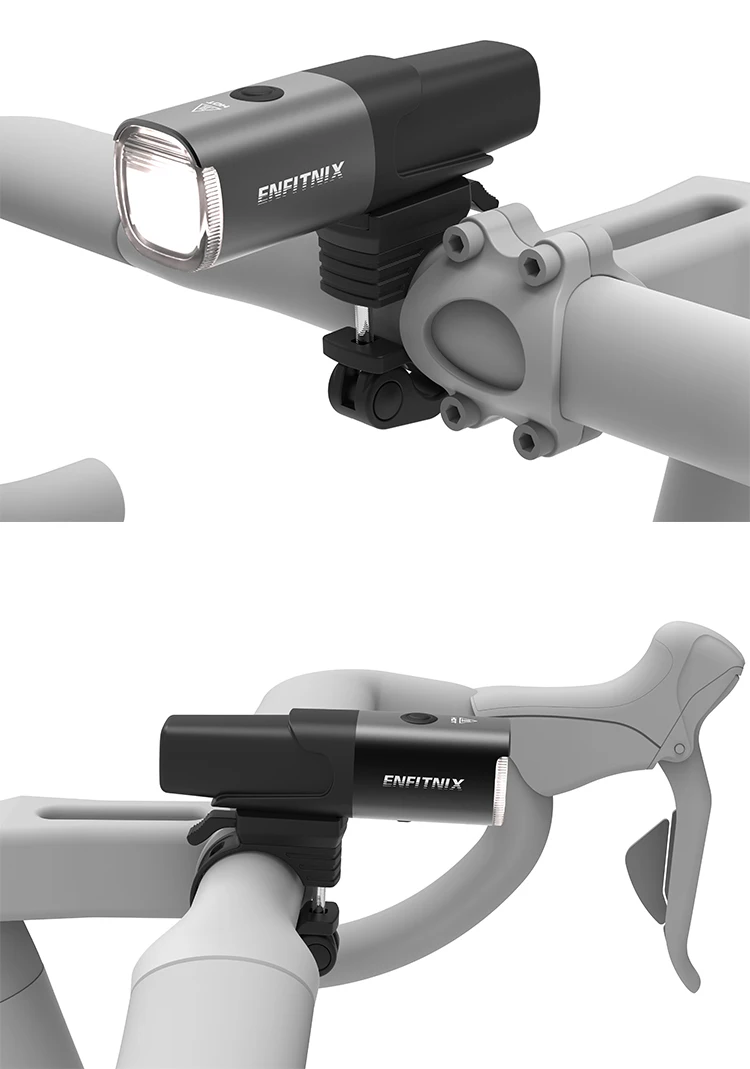

Mount the handlebar bracket to the handlebar and slide in the Navi800.

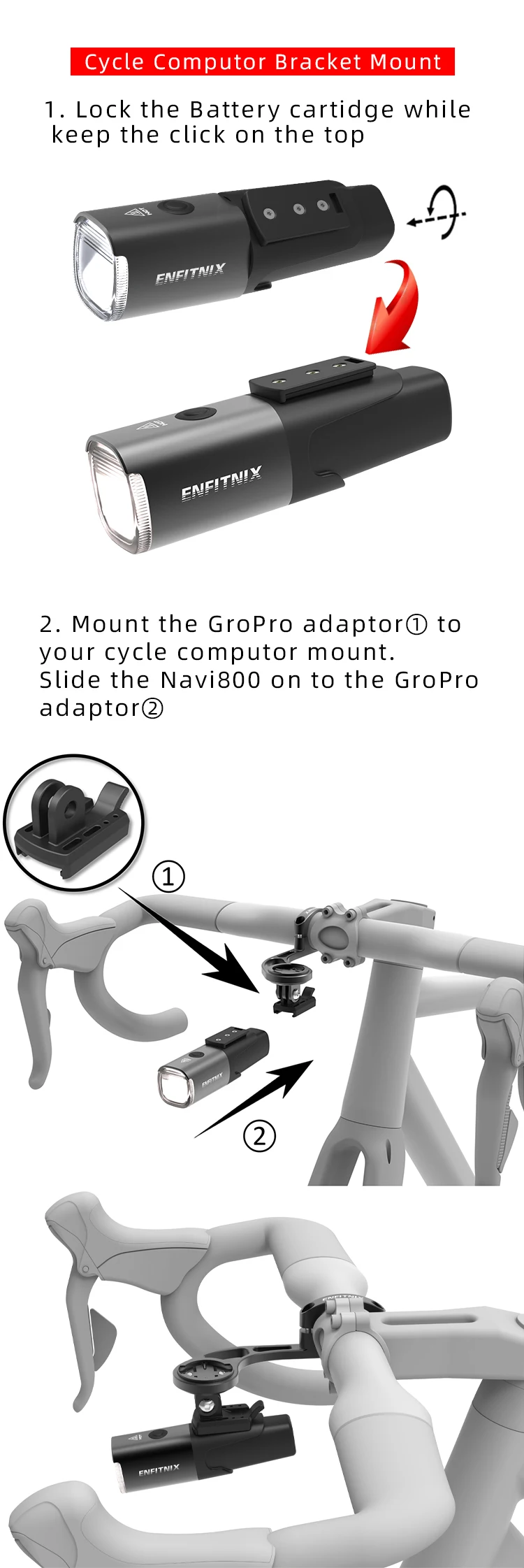

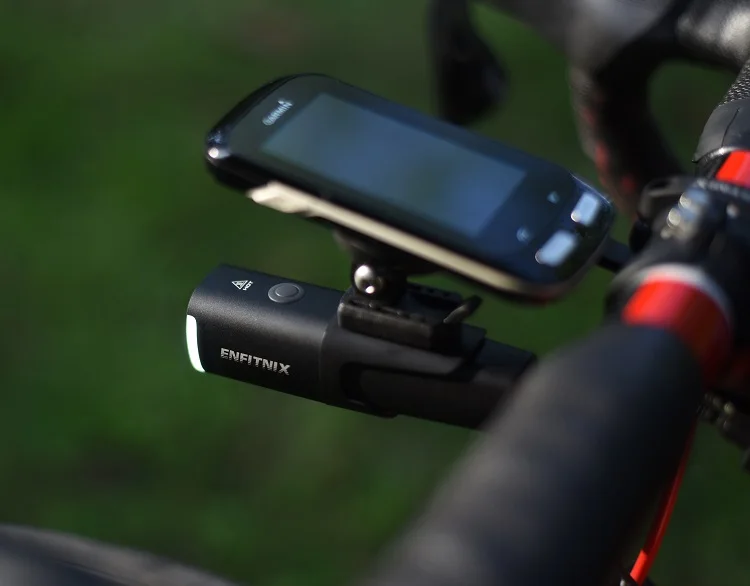

Cycle Computer Mount(GoPro Adaptor
Install the GoPro adaptor to a standard cycle computer bracket (with GoPro point), and slide in the Navi800. Make sure to keep the button on the top.
